CSV Import

How to import LoRaWAN devices via .CSV File

Information

With Datacake, you can easily import LoRaWAN devices through a .CSV file. Just drag and drop the file into the designated upload area outlined in step 3, labeled "Device".

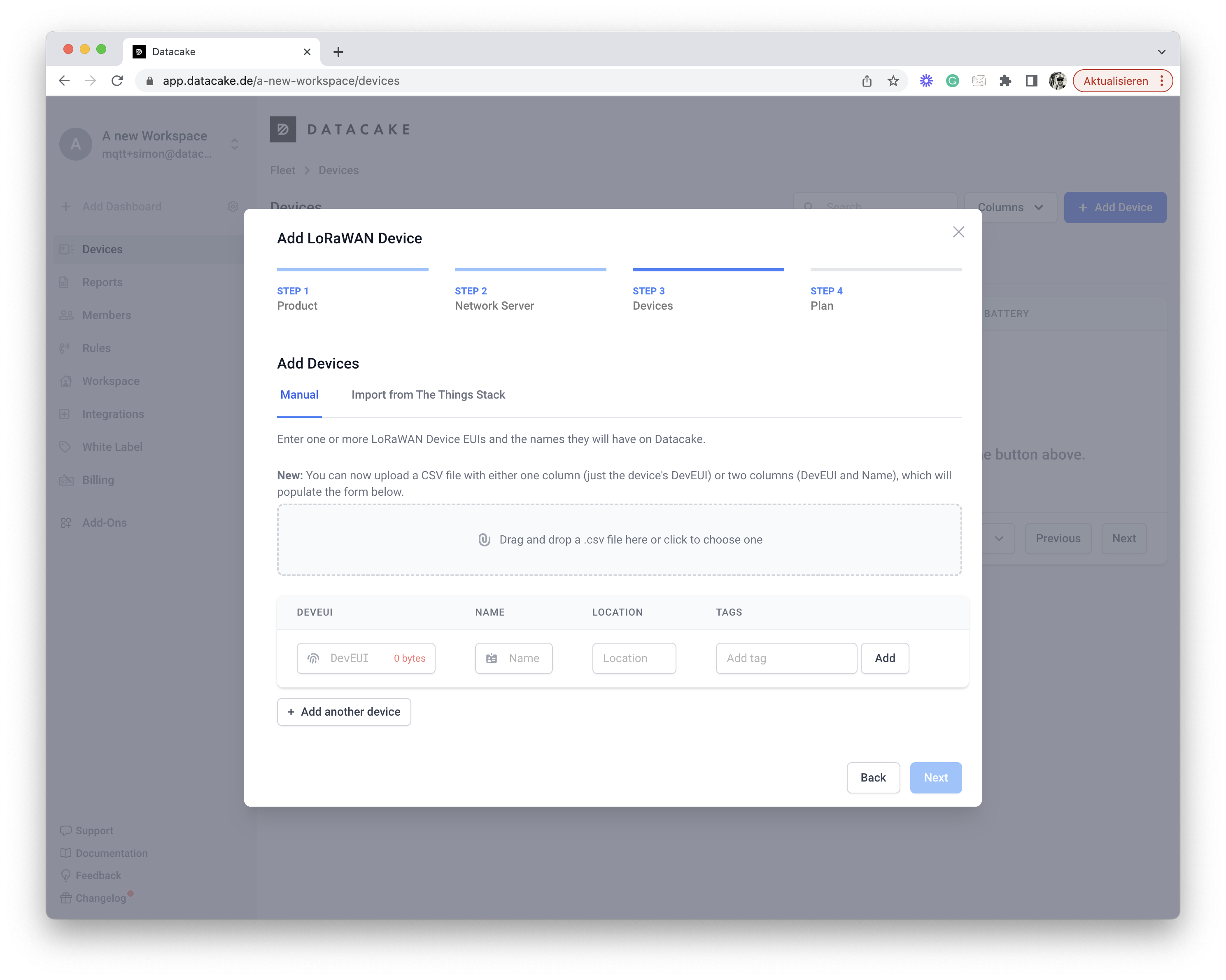

Step 3 - Add Devices manually or via CSV-File

Structure

To ensure proper formatting, the .CSV file must adhere to the following row structure.

DevEUI;Device Name;Device Location description;Tag 1,Tag 2,Tag 3

If you only wish to share the DevEUI and Device Name, it's not necessary to include the Device Location and Tags.

DevEUI;Device Name;;Tag 1,Tag 2,Tag 3

DevEUI;Device Name;Device Location;

DevEUI;Device Name;;

File Example

Please ensure that your .CSV file is structured exactly the same as the provided example.

123456789abcdef1;Device 1;Room 101;Temperature,Humidity,Pressure
aabbccddeeff1122;Device 2;Room 202;Light,Occupancy,Safety
f0e1d2c3b4a59687;Device 3;Room 303;CO2,Smoke,Fire
0123456789abcdef;Device 4;Room 404;Noise,Vibration,Shock
fedcba9876543210;Device 5;Room 505;Water,Level,Flow

Avoid using a header on the first line of the CSV. This can cause confusion for the importer.

Template File

1KB

lora_devices.csv

Open

Example CSV-File as Template

Tags

To attach tags to your devices, simply include them in the 4th column of the CSV file.

123456789abcdef1;Device 1;Room 101;Temperature

Please remember to separate multiple tags with a comma.

123456789abcdef1;Device 1;Room 101;Temperature,Humidity,Pressure

Datacake LNS

You can also batch import devices to the Datacake LNS. For that you will have to drag and drop a file with the following structure:

DevEUI;Device Name; AppEUI(or JoinEUI); AppKey/NWKKEY; Frequency; Device Class; Location description;Tag 1,Tag 2,Tag 3

Make sure that your CSV file doesn't have a header with the titles (it should simply start with the first device). Otherwise the platform will return an Error message.

If you want, you don't need to include the Device Location and/or Tags. The structure is then the following:

DevEUI;Device Name; AppEUI(or JoinEUI); AppKey/NWKKEY; Frequency; Device Class;;Tag 1,Tag 2,Tag 3

DevEUI;Device Name; AppEUI(or JoinEUI); AppKey/NWKKEY; Frequency; Device Class; Location description;

DevEUI;Device Name; AppEUI(or JoinEUI); AppKey/NWKKEY; Frequency; Device Class;;

We currently support the following frequencies:

• EU_863_870_TTN

• US_902_928_FSB_2

And the devices classes:

• A

• C

Remember that DevEUI and AppEUI are strings 8 bytes long. AppKey is a 12 byte string. All of them should be provided by your device manufacturer.

4954957556556566;Device 1;cd1a75ae5818dcbe;c39ebd8578c3d7ac6dfef73afb60dfba;EU_863_870_TTN;A;Room 101;Temperature,Humidity,Pressure
aabbccddeeff1122;Device 2;cd1a75ae5818dcbe;f171b14be6e3494ce6da3dd8e67cbb8c;EU_863_870_TTN;A;Room 202;Light,Occupancy,Safety

Template file for the Datacake LNS auto-importer:

239B

device_data_datacakelns.csv

Open
